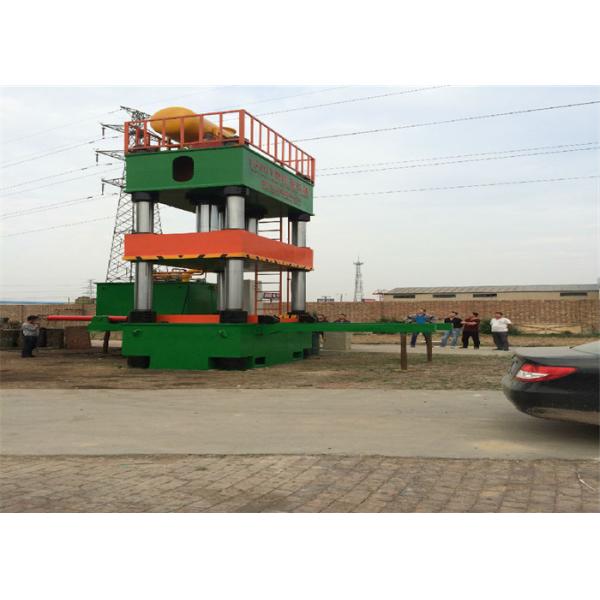

1000T Four Column 10000KN Hydraulic Power Press Machine

Brand Name : HEI YAN

Model Number : HYY

Certification : CE/ISO

Place of Origin : CHINA

MOQ : 1

Price : Negotiation

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 1 sets per month

Delivery Time : 30 working days

Packaging Details : wooden packing or according to the customer's requests

Product Name : 1000T Four Column Type For Elbow Calibration Hydraulic Press Machine

Press Force : 1000T

Usage : Elbow Sizing

Type : Frame

Input Voltage : 380V

Control Way : Buttons

Color : Customized

Left and right working size : 2000mm

Front and rear working dimensions : 1500mm

Maximum height : 1500mm

Nominal pressure : 10000KN

High Light : hydraulic power press, industrial hydraulic press

Contact Now

1000T Four Column Type Easy Structure For Elbow Sizing Hydraulic Press Machine

Specification
Item Unit HYY-63 HYY-100 HYY-200 HYY-315 HYY-315A HYY-500 HYY-500A HYY-630 HYY-800 HYY-1000 HYY-1600 HYY-2000 HYY-2500
Nominal Pressure KN 630 1000 2000 3150 3150 5000 5000 6300 8000 10000 16000 20000 25000
Ejecting Force KN 180 190 300 400 400 1000 1000 1000 1000 1000 2000 2500 -
Back Stroke Force KN 190 320 470 600 600 1000 1000 1000 1100 1300 1000 2600 1000
Stroke Length mm 400 600 710 800 800 900 900 900 900 900 1000 1000 1200
Ejecting Stroke mm 150 200 200 250 250 350 350 350 350 350 400 300 -
Opening Height mm 600 900 1120 1250 1250 1500 1500 1500 1500 1500 1500 2500 2500
Speed of Slide Idle Stroke mm/S 76 80 120 100 100 100 140 80 120 120 150 150 150
Work mm/S 15 10 10-15 6-12 6-12 4-10 4-10 4-10 5-12 4-12 5-12 4-10 5-12
Back Stroke mm/S 70 50 80 65 65 80 80 70 90 90 150 150 120
Ejecting Speed Upward mm/S 80 80 95 95 95 80 80 80 65 80 50 40 -
Back mm/S 160 160 135 135 135 160 160 220 200 170 80 120 -
Bolster Surface L.R. mm 520 690 1000 1260 2000 1400 2200 1600 1500 1500 2500 2000 2800
F.B. mm 490 630 900 1120 1400 1400 1400 1600 1500 1500 1800 2000 2400
Overall Dimension L.R. mm 4060 5000 5145 5100 4900 8300 8000 3650
F.B. mm 3525 3525 4600 4200 3400 3000 3000 5900
Above Ground mm 2592 3090 3950 4390 4680 5700 5700 6000 7100 7500 5925 7660 7530
Power of Motor KW 7.5 7.5 22 22 22 44 46 60 74 68 91..6 183 156
Weight Kg 3000 3500 10500 15500 28000 29000 42000 42000 51000 54000 142000 148000

1000T Four Column Type Hydraulic Press Machine For Elbow Calibration is stand-alone drive, hydraulic pump directly driven by two solenoid valves to manage the flow direction, therefore promoting the activities of beams for moving up and down.The machine work pressure relief valve can be changed, and can attain the job requirements.The system is easy in structure, convenient maintenance, can be adapted to different Reducer Forming Hydraulic Press departments.
Hydraulic presses for the universal hydraulic machine, by the host and the drive
mechanism composed of a wide range of universal plastic material applied to suppress, punching, bending, and calibration equipment pressure and press
molding and so on.

The working environment of Frame Type Hydraulic Pressing Machine:

1. Temperature: 0 to 40.
2. Humidity relative humidity below 90%.

3. Voltage: 380V(15% and +5%), 50HZ

1000T Four Column 10000KN Hydraulic Power Press Machine1000T Four Column 10000KN Hydraulic Power Press Machine1000T Four Column 10000KN Hydraulic Power Press Machine
